Optical Fiber Technology

Optical fibers are thin glass/plastic strands transmitting light, crucial for high-bandwidth, long-distance communication (fiber optics), offering better speed and immunity to interference than copper cables, with applications in telecommunications, medicine, and more, a field named by Narinder Singh Kapany.

These fibers guide light via a core and cladding, enabling vast data transfer for internet, phone, and video, and are stronger and more secure than metal wires.

1. Key characteristics and uses:

• Material: Made from ultra-pure glass (silica) or plastic, drawn to hair-like thickness, stronger than steel.
• Function: Transmit light pulses, acting as tiny waveguides.
• Benefits: High bandwidth, low data loss (attenuation), immunity to electromagnetic interference (EMI), and better security.

2. Applications:

• Communications: Backbone for internet, phone, and HD video.
• Medical: Endoscopes (fiberscopes) for imaging inside the body.
• Industrial: Home networks, automotive, military systems.

3. How they work (Simplified):

• Structure: A transparent core surrounded by cladding, a material with a lower refractive index, which traps light in the core through total internal reflection.

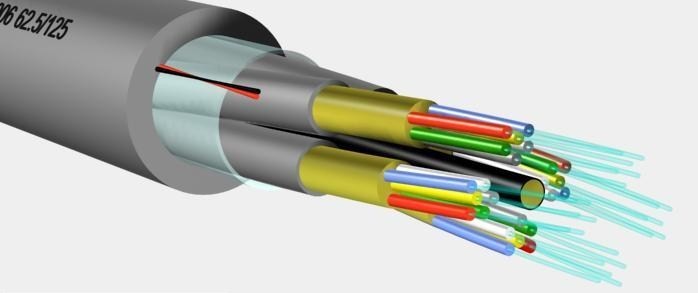

• Construction: Fibers are bundled into cables, providing immense data capacity, with single strands supporting millions of video streams.

4. The term "fiber optics":

The field of applied science using these fibers was named by Indian-American physicist Narinder Singh Kapany.

- How Does a Fiber Optic Cable Work?

A fiber optic cable works by transmitting data as pulses of light through thin strands of glass or plastic, guided by the principle of total internal reflection; light entering the central core (higher refractive index) bounces off the surrounding cladding (lower refractive index) and travels long distances with minimal loss, acting as a waveguide. Different fiber types, single-mode (long distances, narrow core) and multimode (shorter distances, wider core), support different light paths, enabling high-speed data transmission for telecom, internet, and other applications.

1. Key Components & Principle:

• Core: The central part of the fiber carrying the light.
• Cladding: A surrounding layer with a lower refractive index than the core.
• Total Internal Reflection (TIR): When light hits the core-cladding boundary at a shallow angle (greater than the critical angle), it's completely reflected back into the core, allowing it to propagate.

2. How it Transmits Data:

• Signal Conversion: Electrical signals are converted into light pulses (often from lasers or LEDs).
• Light Propagation: These light pulses enter the fiber core and "bounce" along its length due to TIR.
• Data Transmission: The light pulses travel through the fiber, carrying data at high speeds.
• Signal Reception: At the other end, a photodetector converts the light pulses back into electrical signals.

3. Types of Fibers:

• Single-Mode Fiber (SMF): Has a very narrow core, supporting a single light path, ideal for long-distance, high-bandwidth communication.
• Multimode Fiber (MMF): Features a wider core, allowing multiple light paths (modes), making it suitable for shorter distances and higher power transmission.

4. Connections:

• Fusion Splicing: Fusing fiber ends with an electric arc for permanent, low-loss connections.
• Mechanical Splicing: Using mechanical force to hold fibers in precise alignment.
• Connectors: Used for temporary or semi-permanent connections, enabling devices to link to the fiber.

- What Are Fiber Optics Made of?

Fiber optics are made of ultra-pure glass (silica) or plastic strands, featuring a central core for light transmission, surrounded by a cladding layer (also glass/plastic) to reflect light back in, and protected by outer layers like a buffer (plastic) and jacket, all working together to send data as light pulses.

1. Core Components:

• Core: The innermost part, typically made of high-quality glass or plastic (silica), thinner than a human hair, that carries the light signals.
• Cladding: A layer of glass or plastic surrounding the core with a lower refractive index, causing light to reflect back into the core (total internal reflection).
• Buffer Coating: A protective plastic layer over the cladding that shields the fiber from moisture and damage.
• Jacket/Outer Sheath: The outermost layer, usually plastic, providing overall cable strength and protection.

2. How it Works:

Data (voice, video) is converted into light pulses, sent down the core, reflects off the cladding, travels long distances with minimal loss, and is received at the other end.

- Optic Fiber Sensing Technology

Optical Fiber Technology uses specialized fibers and materials (like polymers, hydrogels, nanoparticles) to create highly sensitive sensors that detect physical changes (temperature, pressure, strain, vibration, chemicals) by monitoring light signals, enabling applications from monitoring bridges and pipelines to real-time biomedical diagnostics, soft robotics, and Internet of Things (IoT) devices, leveraging advantages like EMI immunity and remote sensing over long distances.

Devices include Fiber Bragg Gratings (FBGs), interferometers, and tapers, integrated into structures or wearables for precise, non-invasive monitoring.

A. Materials & Devices:
1. Fibers: Standard silica, polymer optical fibers (POFs), and novel materials like nano-structured fibers.

2. Sensing Layers/Dopants: Materials like elastomers (PDMS), hydrogels, conductive polymers, and nanoparticles (alumina, baria) are added to alter light properties in response to stimuli.

3. Device Structures:Fiber Bragg Gratings (FBGs): Periodic structures in the fiber core that reflect specific wavelengths, changing with strain or temperature.

• Interferometers: Utilize light interference patterns to detect minute changes.
• Tapered Fibers/Microstructures: Enhance sensitivity to refractive index, chemicals, or pressure.

• Intensity-Based: Measures changes in light intensity (absorption, scattering).
• Wavelength-Based: FBGs and other gratings shift their reflected wavelength.
• Phase-Based: Detects phase shifts in light, often used in interferometric sensors.
• Fluorescence: Analyte interaction causes fluorescence changes.

5. Key Applications:

• Infrastructure Monitoring: Bridges, pipelines, dams for strain, temperature, security.
• Biomedical: Blood pressure, oxygen, temperature (invasive/minimally invasive), endoscopy, OCT imaging.
• Industrial: Manufacturing process control, engine monitoring, harsh environments.
• Aerospace/Automotive: Structural health monitoring, fuel level sensing.
• Wearables/Textiles: Smart clothing for health monitoring, human-machine interfaces.
• Environmental: Chemical detection, pollutant sensing.

6. Advantages:
