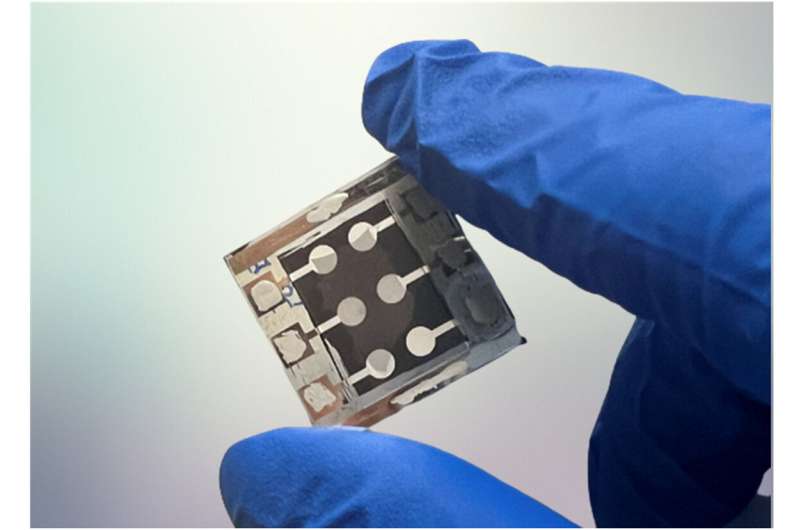

[Perovskite Solar Cell - The City University of Hong Kong]

- Perovskite Solar Cells (PSCs)

Perovskites are a class of materials that show promise for high performance and low production costs in solar cells.

The term "perovskite" derives from their crystal structure. These materials are also used in other energy technologies, such as fuel cells and catalysts.

Perovskites commonly used in photovoltaic (PV) solar cells are more properly called "metal halide perovskites" because they are made of a combination of organic ions, metals, and halogens; in other applications, perovskites may be made of oxygen instead of halogens and are often entirely inorganic.

Metal halide perovskites are the main absorber material, or "active layer," in perovskite solar cells. In this potentially low-cost technology, a thin layer of perovskite absorbs light and excites charged particles called electrons; when these excited electrons are extracted, they generate electricity. PSCs are called thin-film cells because they require a much thinner active layer than crystalline silicon PV cells.

In recent years, PSCs have made significant progress, with efficiency increasing rapidly, from about 3% reported in 2009 to more than 26% on small-area devices (about 0.1 cm²) today. The efficiency of perovskite-silicon tandem cells has reached nearly 34%.

Although PSCs have achieved high efficiency in a very short period of time, perovskite photovoltaic technology has not yet been mass-produced, and many challenges must be addressed before perovskites can become a competitive commercial photovoltaic technology.

Perovskite solar cells (PSCs) represent a disruptive, low-cost thin-film technology using 𝐴𝐵𝑋₃ crystal structures to achieve rapid, solution-processed, and flexible photovoltaics.

Surpassing 25% efficiency, they enable high-performance tandem configurations and, when combined with AI, promise accelerated material discovery and reduced manufacturing costs, with key research now enabling precise, high-accuracy forecasting of their dynamic behavior.

1. Key Aspects of PSCs and Materials:

• Structure: Typically hybrid organic-inorganic metal halides.
• Manufacturing: Solution-based processing (spin coating, inkjet printing) enables low-temperature, roll-to-roll manufacturing, which is significantly less energy-intensive than silicon.
• Flexibility: Films can be applied to flexible substrates, creating versatile, lightweight panels for building-integrated photovoltaics (BIPV).
• Efficiency & Performance: Laboratory cells have surpassed 27% efficiency, with silicon-based tandem cells achieving over 30%.

2. AI Revolutionizing Solar Cell Development:

• Material Discovery: Machine learning identifies high-quality perovskites from massive datasets.
• Performance Optimization: AI optimizes cell structure for higher efficiency and better stability.
• Acceleration: Machine learning algorithms predict the stability and efficiency of new compounds without needing extensive, time-consuming experiments.

3. Key Advantages:

• Lower Costs: Significantly lower production costs compared to silicon-based technology.
• Tunable Absorption: Bandgap engineering allows tailoring to specific solar spectrum ranges.
• Versatile Applications: Lightweight and flexible, these materials can be applied to surfaces like windows, walls, and curved structures.

4. Challenges:

Challenges for widespread adoption include improving long-term durability against moisture/heat and, in some cases, addressing the environmental impact of lead-based compounds.

 - Main Layers of Perovskite Solar Cells (PSCs)

The following is an overview of the general steps involved in producing perovskite solar cells (PSCs) and modules. Because the technology is still in the development phase, the details of each step can vary greatly between different research groups.

This includes the elements that make up the perovskite material, the assembly of cells and modules, and the testing performed on the finished product.

A typical perovskite solar cell consists of several layers, including:

• Transparent conductive oxide (TCO) glass substrate: Provides electrical conductivity and light transparency.
• Blocking layer: A compact semiconductor layer (e.g., TiO2) that facilitates electron transfer.
• Mesoporous layer: A scaffold for perovskite deposition.
• Perovskite absorbing material: The light-harvesting layer.
• Hole transport material (HTM): Facilitates hole transfer.
• Back contact: Provides electrical connection.

- Perovskite Materials

Perovskite materials are emerging as a low-cost, lightweight, and high-efficiency successor to silicon in solar technology, boasting potential to exceed the 20-22% efficiency of current 90% market-dominant silicon cells. While promising, they currently face stability issues under environmental stress and difficulties in scaling up production from lab to commercial scale.

1. Key Aspects of Perovskite Materials:

• Performance: Perovskites, a family of materials with a specific crystal structure, can achieve high conversion efficiencies, with some lab results showing over 30%.
• Production: They can be produced through low-cost, solution-based processing, making them potentially much cheaper to manufacture than silicon.
• Advantages: Their versatility allows them to be flexible, lightweight, and even used as coatings on windows.
• Challenges: The main hurdles for commercialization are their tendency to degrade under heat and humidity (stability issues) and difficulties in large-scale, high-quality production.
• Applications: Beyond solar panels, they are being researched for use in building-integrated photovoltaics and in space, where they are tested for radiation resistance.

2. Perovskite and Silicon Tandom Cells:

To overcome limitations, researchers are combining perovskites with silicon to create "double-junction" or tandem solar cells.

This approach maximizes light absorption across the spectrum, promising higher efficiencies than either technology alone.

- Main Challenges of Perovskite Devices

Perovskite devices face critical challenges in long-term stability (degradation via moisture, oxygen, light, and heat) and environmental toxicity (lead content), hindering commercialization compared to stable silicon.

The massive, complex chemical parameter space (𝐴𝐵𝑋3 structure) makes finding the ideal, durable composition via traditional, time-consuming trial-and-error methods nearly impossible.

To address these, research focuses on encapsulation techniques, lead-free alternatives, and machine learning approaches to navigate the compositional space.

Key Challenges of Perovskite Devices:

• Stability & Degradation: Perovskites are soft materials that degrade rapidly under environmental stress. They are highly hygroscopic (moisture-sensitive), heat-sensitive, and prone to structural decomposition, leading to much shorter lifespans than silicon.
• Environmental Factors: Exposure to oxygen, moisture, and light causes ion migration, phase segregation, and interfacial defects, reducing power conversion efficiency.
• Toxicity: Many high-performance perovskites contain lead (𝑃𝑏), raising environmental concerns and regulatory hurdles.
• Commercialization & Scalability: While lab efficiency is high, scaling up to large-area, cost-effective, and stable production remains a major bottleneck.
• Exploration Space: The vast number of potential 𝐴𝐵𝑋3 chemical combinations requires excessive, tedious testing to identify optimal stable compositions.

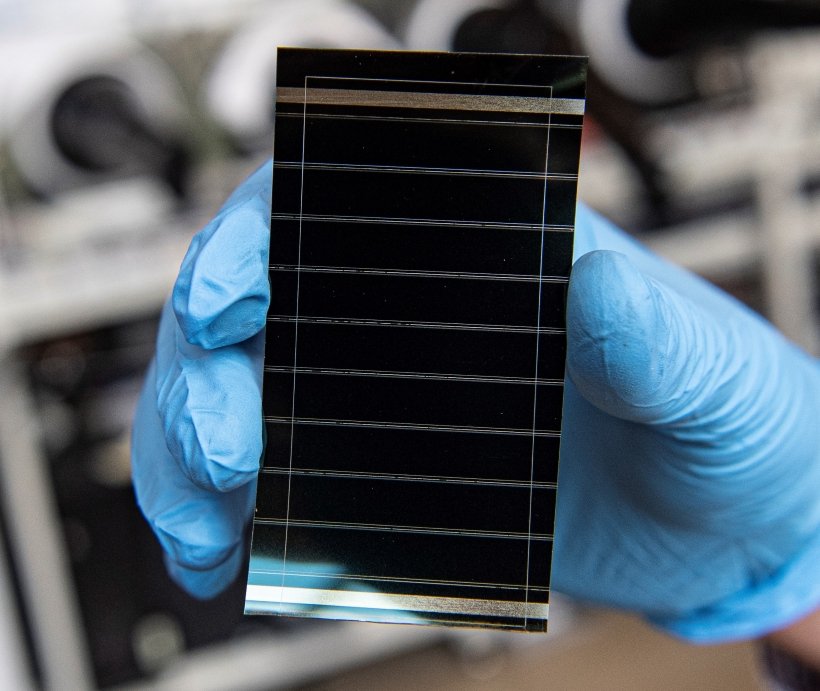

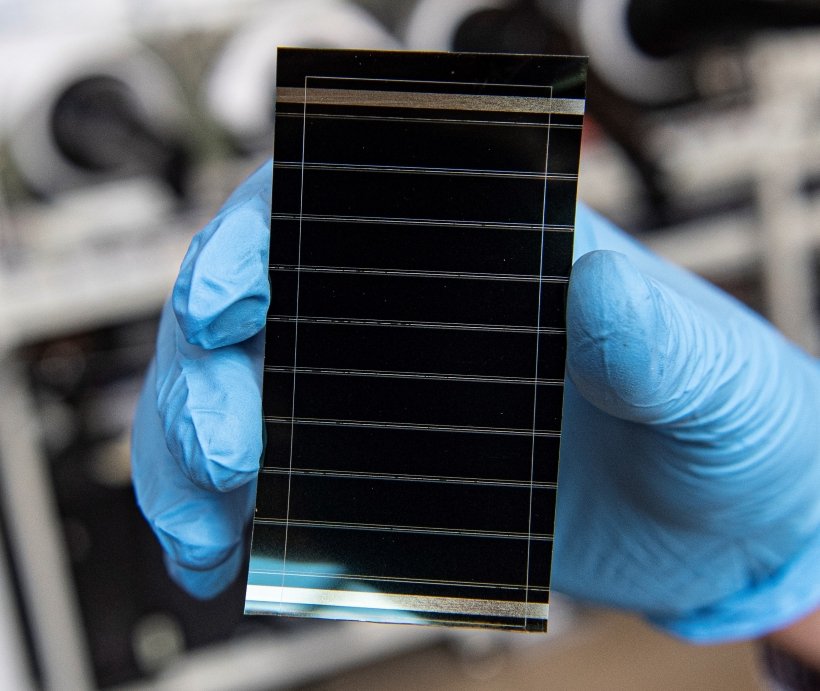

[Perovskite Solar Cell - Dennis Schroeder / National Renewable Energy Laboratory]

- Achievements, Challenges, and Future Prospects for Industrialization of Perovskite Solar Cells (PSCs)

Perovskite solar cells (PSCs) have seen remarkable progress, achieving high power conversion efficiencies (PCEs) and holding significant promise for industrialization. However, challenges remain in achieving stable, large-scale production and overcoming limitations in device stability and cost.

Future prospects include further improvements in stability, cost reduction, and development of flexible and printable PSCs.

1. Achievements:

• High Power Conversion Efficiencies (PCEs): PSCs have demonstrated rapid advancements in PCE, exceeding 26% in single-junction devices and reaching nearly 30% in silicon-based tandem cells.
• Potential for low-cost production: Perovskite materials are relatively inexpensive and simple to manufacture, making them attractive for industrialization.
• Flexibility and printability: PSCs can be deposited as thin films and have the potential for flexible and printable applications.
• Roll-to-roll processing: Techniques like slot-die coating enable high-throughput, continuous production of PSCs.

2. Challenges:

• Stability: PSCs are known for their instability under various conditions, including moisture, UV light, and heat, leading to degradation.
• Cost: While potentially lower than silicon-based solar cells, further cost reduction is needed for widespread adoption.
• Manufacturing scalability: Scaling up PSC production to industrial levels requires overcoming challenges in device uniformity and large-area deposition.
• Material and solvent issues: Optimizing perovskite material compositions and solvents for efficient and stable device performance is crucial.

3. Future Prospects:

• Improved stability: Ongoing research focuses on developing passivation layers, encapsulation techniques, and alternative perovskite compositions to enhance device stability.
• Cost reduction: Exploring cheaper perovskite materials, optimizing fabrication processes, and reducing material usage are key to lowering production costs.
• Flexible and printable PSCs: Developing flexible and printable PSCs opens up new applications, such as wearable electronics and building-integrated solar energy systems.
• Tandem structures: Combining PSCs with silicon or other materials to create tandem solar cells can further improve PCE and stability.
• AI-driven materials discovery: AI can help accelerate the search for new perovskite materials with enhanced properties.

- AI in Finding Reliable and Low-cost Solar Cells

Artificial intelligence (AI) and machine learning (ML) are revolutionizing solar technology by accelerating the discovery of new, low-cost perovskite materials, optimizing panel design for higher efficiency, and predicting degradation to improve reliability.

By analyzing vast datasets, AI reduces experimental time and costs, while optimizing energy storage, distribution, and maintenance, ultimately reducing overall energy bills.

AI is increasingly used to automate manufacturing, enhance quality control via image recognition, and optimize site selection for new solar projects.

Key Contributions of AI to Solar Development:

• Accelerated Material Discovery: ML algorithms analyze large datasets to identify promising new materials—specifically high-efficiency perovskites—significantly reducing the time and cost required for laboratory experiments.
• Optimized Design and Performance: AI optimizes panel tilt, layout, and tracking systems, and enhances energy storage management, ensuring maximum sunlight capture and increased reliability.
• Predictive Maintenance and Reliability: Machine learning models analyze environmental and operational data to predict and prevent, rather than just react to, performance degradation and damage.
• Cost Reduction: By reducing R&D time and optimizing production, AI lowers the cost of manufacturing and improves the efficiency of thin-film solar cells, making them more competitive.
