Radio Transmission and Communication

- Overview

Radio transmission and communication use electromagnetic waves (radio waves) to send information wirelessly by modulating properties (amplitude, frequency, phase) of a carrier wave with data (sound, video, digital), then broadcasting it via antennas for receivers to capture and demodulate back into usable signals, crucial for everything from AM/FM radio to Wi-Fi and mobile phones.

The process involves converting info to electrical signals, encoding it onto a carrier wave, transmitting through air, and decoding at the receiver using antennas.

1. Key Components

• Transmitter: Converts message to electrical signal, modulates a carrier wave, amplifies, and sends it via antenna.
• Receiver: Antenna captures waves, demodulates the signal to extract data, and converts it back to sound/image/data.

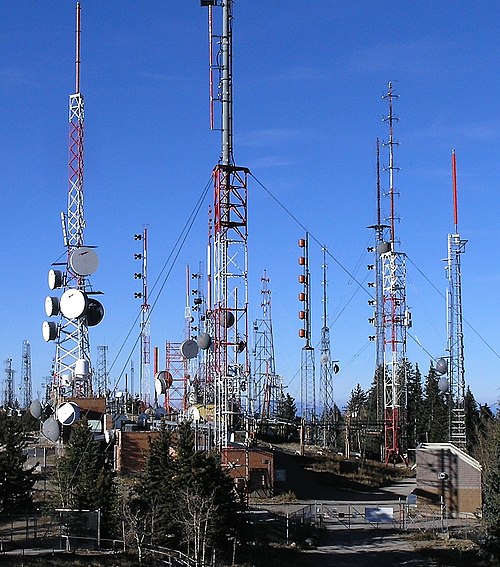

• Antennas: Radiate and capture radio waves; can be omnidirectional (broadcasting) or directional (focused).

2. How It Works (Simplified):

• Transduction: A microphone turns sound into a varying electrical signal (modulation signal).
• Carrier Wave Generation: An oscillator creates a high-frequency current (carrier wave).
• Modulation: The message signal alters the carrier wave's strength (AM) or frequency (FM).
• Transmission: The modulated signal travels as radio waves through the air.
• Reception: Receiver's antenna picks up waves, extracts the original signal (demodulation).
• Output: A speaker converts the signal back to sound.

3. Types of Modulation:

• Amplitude Modulation (AM): Changes the strength (amplitude) of the carrier wave.
• Frequency Modulation (FM): Changes the frequency of the carrier wave.
• Phase Modulation: Alters the wave's phase.

4. Applications:

• Broadcasting (AM/FM radio, TV)
• Two-way radios (walkie-talkies, aviation, marine)
• Navigation (GPS)
• Wireless data (Wi-Fi, Bluetooth, cellular)
• Radar

Please refer to the following for more information:

• Wikipedia: Radio

• Wikipedia: Radio Wave

• Wikipedia: Antenna (Radio)

• Wikipedia: Radio Spectrum

- Radio Waves

Radio waves are long-wavelength electromagnetic waves, longer than infrared light, used extensively for communication (TV, Wi-Fi, cell phones) because they're generated by accelerating charges (like electric currents) and travel at light speed.

They span huge frequency ranges, from 30 Hz (10,000 km wavelength) to 300 GHz (1 mm wavelength), with higher frequencies (microwaves) used for things like 5G and shorter-range tasks, while lower ones travel further, enabling global communication. Naturally, they come from lightning and space, and astronomically, they reveal cosmic secrets.

1. Key Characteristics:

• Electromagnetic Spectrum: Radio waves are at the low-frequency, long-wavelength end, next to infrared.
• Generation: Created by accelerated electric charges, like time-varying currents in antennas.
• Speed: Travel at the speed of light in a vacuum.
• Frequency/Wavelength: Range from 30 Hz (10,000 km) to 300 GHz (1 mm).
• Natural Sources: Lightning and celestial bodies.

2. Common Uses:

• Broadcasting: Radio, TV.
• Wireless: Wi-Fi, Bluetooth, cellular networks (including 5G's use of higher radio frequencies).
• Navigation: GPS, radar.
• Satellite Comms: Connecting Earth to space.
• Astronomy: Radio telescopes detect cosmic radio waves, unaffected by sunlight or clouds.

- Radio Communication

In radio communication, used in radio and television broadcasting, cell phones, two-way radios, wireless networking, and satellite communication, among numerous other uses, radio waves are used to carry information across space from a transmitter to a receiver, by modulating the radio signal (impressing an information signal on the radio wave by varying some aspect of the wave) in the transmitter.

Radio communication uses radio waves for one-way (simplex), one-at-a-time two-way (half-duplex, like walkie-talkies), or simultaneous two-way (full-duplex, like phones) data transfer, with simplex being broadcast, half-duplex requiring push-to-talk, and full-duplex allowing simultaneous talk/listen.

Here's a breakdown:

1. Simplex (One-Way):

• Flow: Data moves in only one direction.
• Example: Radio/TV broadcasts, where you only receive.
• Mechanism: One device transmits, the other always receives.

2. Half-Duplex (Alternating Two-Way):

• Flow: Two-way, but only one direction at a time (alternating).
• Example: Walkie-talkies (push-to-talk).
• Mechanism: Devices take turns transmitting and receiving on the same frequency; requires a button press to switch roles.

3. Full-Duplex (Simultaneous Two-Way):

• Flow: Two-way and simultaneous (both can talk/listen at once).
• Example: Telephone calls, mobile phones.
• Mechanism: Often uses separate frequencies for transmit and receive, allowing for natural conversation flow.

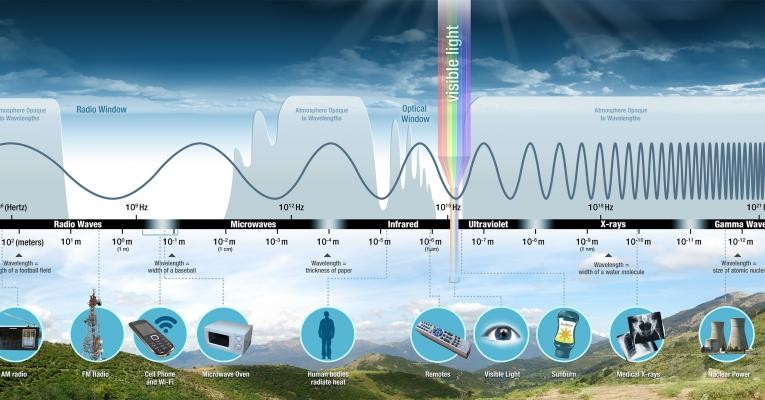

- Radio Spectrum and Radio Waves

The radio spectrum is the segment of the electromagnetic spectrum (from ~3 kHz to 3 THz) used for radio waves, which are long-wavelength electromagnetic waves that carry information via transmitters and antennas, enabling technologies like Wi-Fi, cellular, broadcasting, and satellite communication, with specific frequencies (bands) assigned for different services to avoid interference.

1. Radio Waves:

• What they are: A form of electromagnetic radiation, like light, but with much longer wavelengths (millimeters to kilometers) and lower frequencies (Hertz, Hz).
• How they work: Generated by transmitters as electrical signals, they travel at the speed of light and are detected by antennas, which convert them back into electrical signals for devices like radios, phones, and computers.
• Key Properties: Characterized by frequency (cycles per second, measured in Hz, kHz, MHz, GHz) and wavelength (distance of one wave cycle).

2. The Radio Spectrum:

• Definition: The entire range of frequencies (from about 3 kHz to 300 GHz) allocated for radio wave use.
• Bands: Divided into segments (like AM, FM, VHF, UHF, Wi-Fi, Cellular) for specific uses, managed by regulators to prevent signal interference.
• Applications: Powers modern wireless world, including broadcasting (radio/TV), mobile phones (4G/5G), Wi-Fi, Bluetooth, GPS, satellite comms, radar, and Internet of Things (IoT) devices.

3. Key Difference: Radio Spectrum vs. EM Spectrum:

• The Electromagnetic (EM) Spectrum is all electromagnetic waves (radio, microwaves, infrared, visible light, UV, X-rays, gamma rays).
• The Radio Spectrum is just the part of the EM spectrum used for radio waves.
